When manufacturing plastic parts, defects don't just impact quality - they directly affect your bottom line. Let's examine the most common defects and their cost implications.

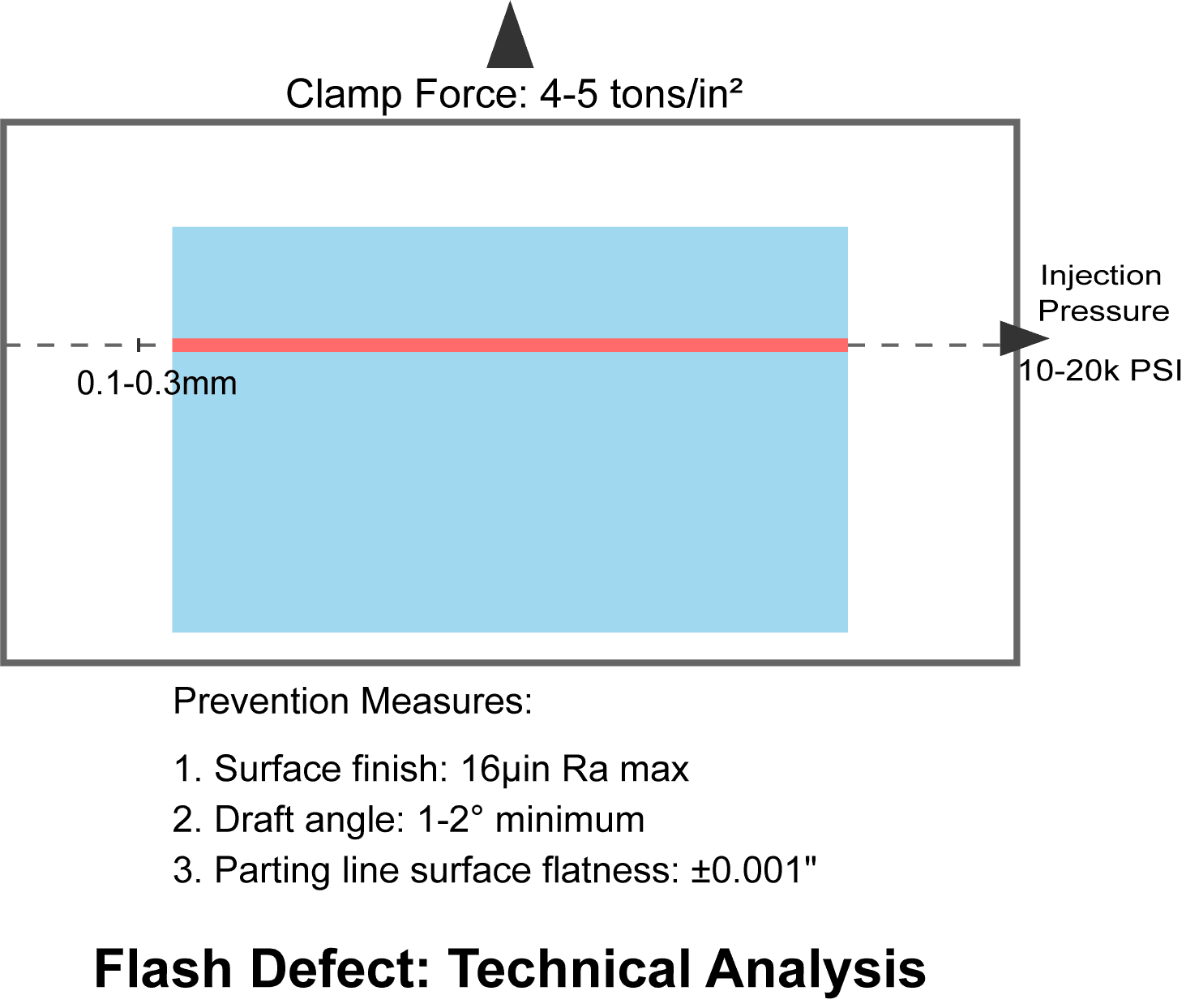

1. Flash: The Hidden Material Thief

Flash occurs when molten plastic escapes at the mold parting line or around ejector pins.

  1. Cost Impact:
    • Material waste: 3-7% increase
    • Secondary operations: $0.10-0.30 per part
    • ool maintenance costs
    • Increased cycle time
  2. Prevention Through Design:
    • Surface finish requirement: 16μin Ra maximum
    • Draft angle: 1-2° minimum
    • Parting line surface flatness: ±0.001“
    • Proper clamp force calculation: 4-5 tons/in²

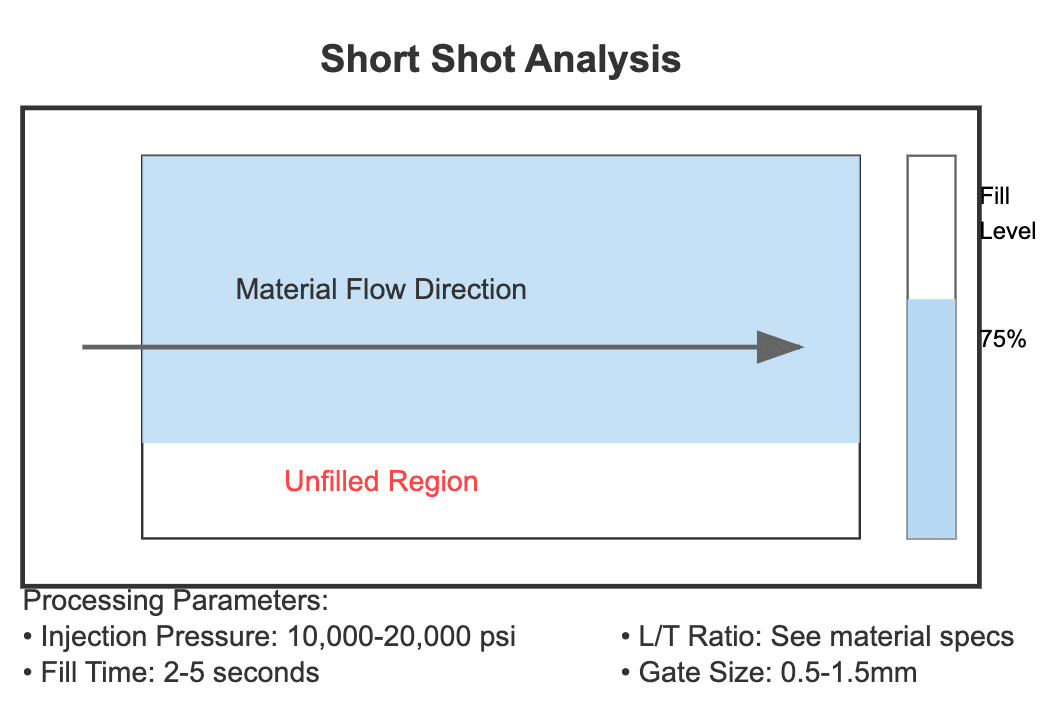

2. Short Shots: Incomplete Parts, Complete Headaches

Short shots result in immediate part rejection and wasted production time.

  1. Critical Parameters:
    • Flow path ratio (L/T):
      • PE: 280-100
      • PP: 280-150
      • PC: 160-90
    • Injection speed: >1 in³/sec
    • Back pressure: 50-100 PSI
    • Hold pressure: 150% of injection pressure

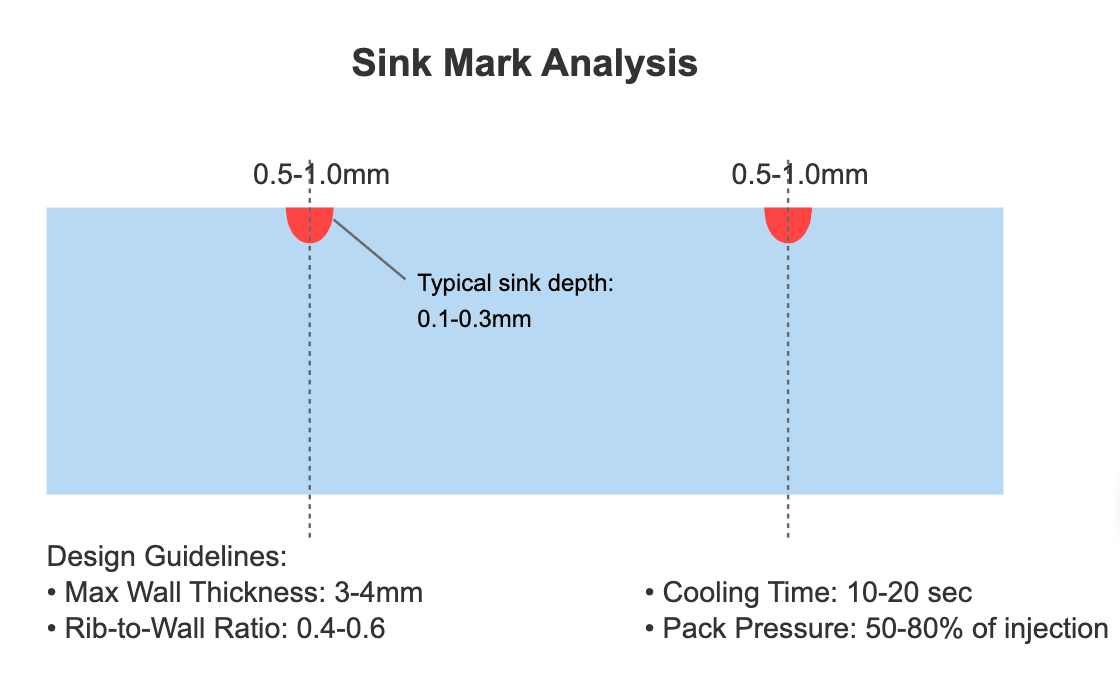

3. Sink Marks: Surface Defects That Sink Projects

Sink marks appear as depressions in thick sections and near ribs.

  1. Design Guidelines:
    • Maximum wall thickness: 4mm
    • Rib thickness: 40-60% of wall
    • Uniform cooling rate
    • Pack time: 5-15 seconds
    • Cooling time calculation: t²/α
    • Mold temperature: Tg ±30°F

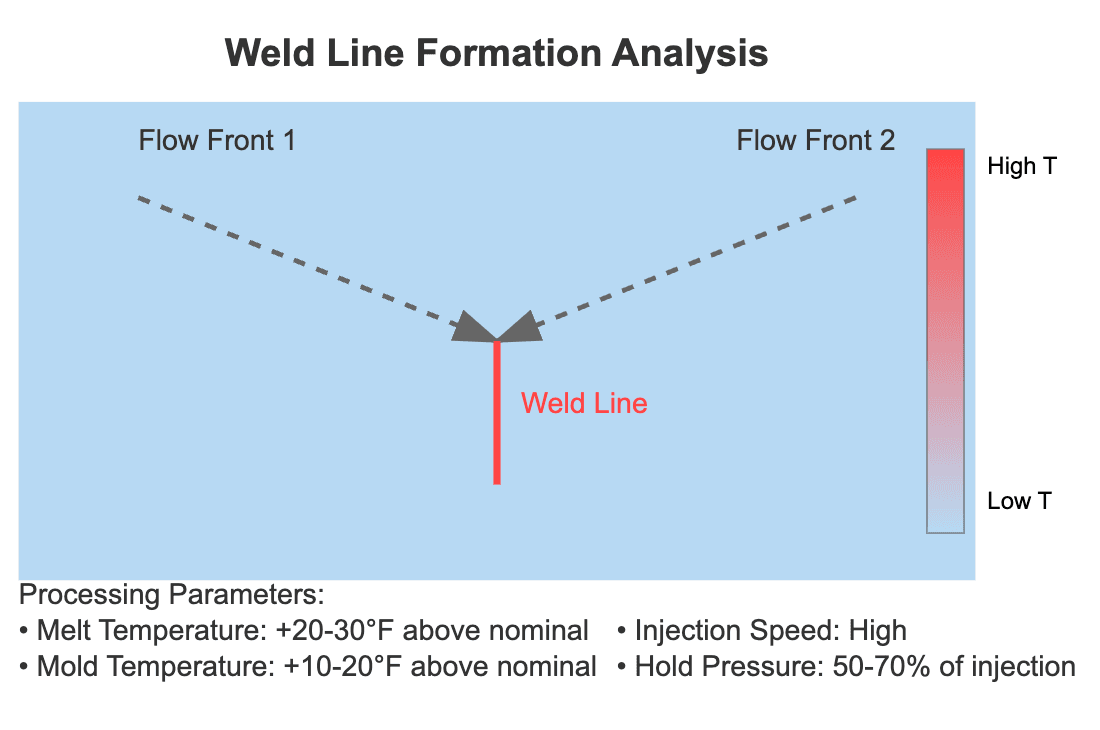

4. Weld Lines: The Structural Weak Point

Weld lines form where two flow fronts meet, creating potential failure points.

  1. Process Controls:
    • Melt temperature by material:
    • Injection velocity > 3 in³/sec
    • Mold temperature = Tg +50°F
    • Second stage pressure > 10,000 PSI

Preventing Defects with Expert Support

At 8xparts, we help you avoid these costly defects through:

  1. Design Review
    • Material selection optimization
    • Wall thickness analysis
    • Gate location optimization
  2. Process Parameter Optimization
    • Temperature profile development
    • Pressure curve optimization
    • Cooling time calculation
  3. Continuous Support
    • Real-time engineering consultation
    • Process troubleshooting
    • Design iteration support
